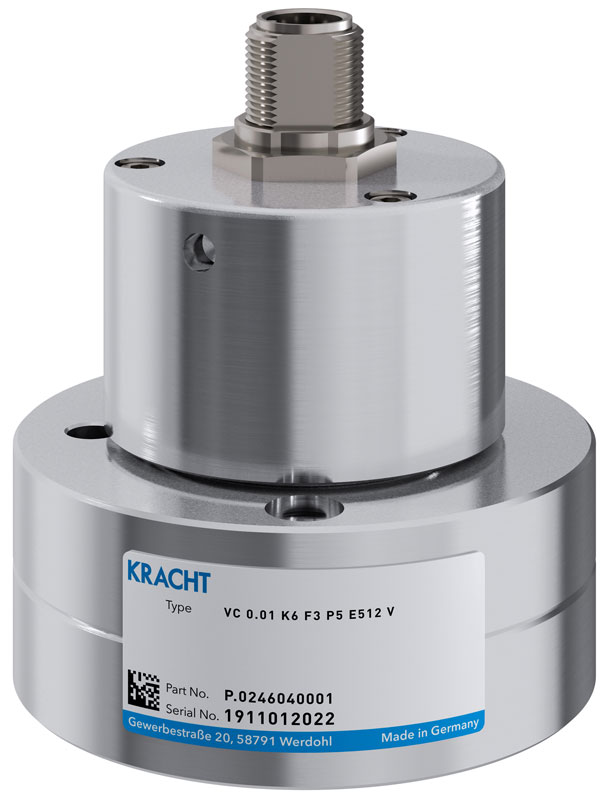

GEAR TYPE FLOW METERS VC 0.01
The world’s smallest gear type flow meter accurately measures volume flows from 0.3 ml/min. The VC 0.01 is easily capable of measuring very small volumes and micro-doses of media with viscosities from 0.8 mm²/s.
CHARACTERISTICS
Measuring range: 0.3 … 500 ml/min
Temperature range: 30 … 100 °C
Maximum pressure: … 120 bar
APPLICATIONS
> For fuel injector testing benches
> For monitoring of microdosing processes in the pharmaceutical and cosmetics industry as well as in the chemical and petrochemical industry
PRODUCT CHARACTERISTICS
> Any flow direction
> High measuring resolution
> Measurement independent of viscosity within the specified ranges
> Low pressure drop
> High-response measurement
> Low measuring starting point
> Low noise emission
> Highly-accurate measurements with outstanding reproducibility
> High degree of accuracy, even with low flow rates at the bottom end of the measuring range
> High working reliability of the electronics
